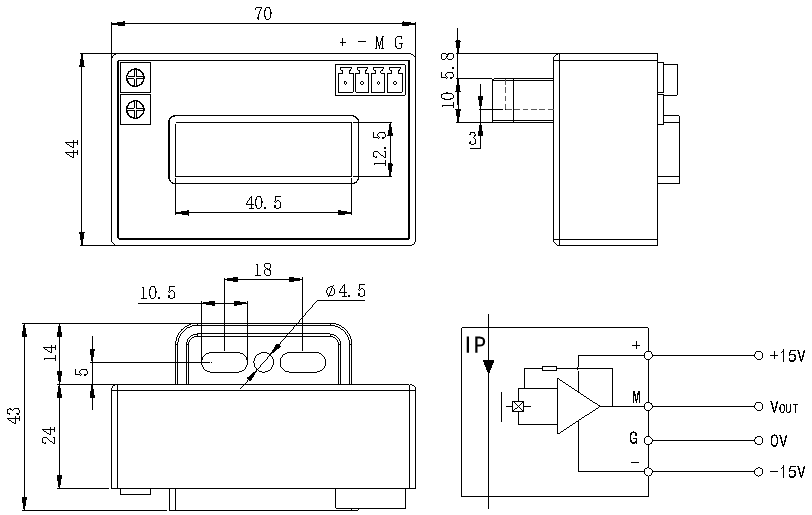

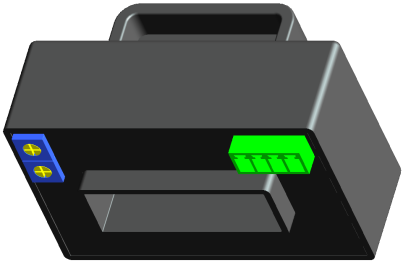

按照部分客户的要求,新增一款便于安装,结构简单的电流传感器外壳,可以测量0-2000A以内的电流,输出信号4V,电源DC ±12-15V,具体外形尺寸及公差如下:
一般公差
General tolerance ± 0.5 mm
其它公差执行
Other tolerance execution GB/T 1804-2000-M
固定孔尺寸
Fixing hole size Φ4.5mm
紧固螺丝
fastening steel screw M4
建议紧固扭矩
Recommended fastening torque 0.75Nm (± 10 %)
连接器
Connection of secondary KF2EDGV-Y-3.81-4P
